ZF 4475.280.016 SCREW PLUG
ZF Part Number: 4475.280.016 (also written as 4475280016 / 4475.280.016 / 4475 280 016)
Compatible ZF Transmission Models
This screw plug is used in the following ZF transmission models:
- ZF 2 WG 94
- ZF 3 WG 100
- ZF 3 WG 100(300)
- ZF 3 WG 200
- ZF 3 WG 201
- ZF 3 WG 260
- ZF 3 WG 310
- ZF 3 WG 310(4)
- ZF 3 WG 94
- ZF 4 BP 210
- ZF 4 BP 230
- ZF 4 WG 100(400)
- ZF 4 WG 100(500)
- ZF 4 WG 115
- ZF 4 WG 130
…and 31 additional models. Contact us to confirm fitment for your specific unit.
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Crawler | 920 | 1 |
| Differential | 720 | 1 |
| Differential | 990 | 1 |
| Filter | 620 | 1 |
| Housing | 150 | 1 |
| Housing | 218 | 1 |
| Housing | 530 | 2 |
| Hydr.Control | 560 | 1 |
| Hydraulic Motor | 22.150 | 4 |
| Input | 280 | 1 |
| Input Housing | 012 | 2 |
| Input Housing | 25.012 | 2 |
Related Parts in Same Assembly
- 5838.300.288 — CLUTCH BELL HOUSING (Qty: 1)
- 0501.222.007 — VALVE BLOCK (Qty: 1)
- 0501.325.280 — SOLENOID VALVE (Qty: 1)
- 0501.327.379 — O-RING (Qty: 1)
- 0501.327.378 — O-RING (Qty: 1)
- 0501.327.380 — O-RING (Qty: 1)
- 0501.327.381 — SCREW (Qty: 1)
- 0750.117.075 — TAPER ROLLER BEARING (Qty: 2)
Frequently Asked Questions
What is ZF part number 4475.280.016?
ZF 4475.280.016 is an OEM screw plug produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as 2 WG 94, 3 WG 100, 3 WG 100(300), 3 WG 200, 3 WG 201. This is a genuine ZF component, not an aftermarket reproduction.
Which ZF transmissions use 4475.280.016?
This screw plug is found in 46 ZF transmission variants, including: 2 WG 94, 3 WG 100, 3 WG 100(300), 3 WG 200, 3 WG 201, 3 WG 260, 3 WG 310, 3 WG 310(4), 3 WG 94, 4 BP 210. These transmissions are commonly used in wheel loaders, graders, and other heavy construction equipment. Contact us to verify fitment for your specific machine.
Where is ZF 4475.280.016 installed in the transmission?
This screw plug is located in the hydr.control, shift system area of the transmission. It appears in 30 different assembly configurations. In the service manual, look for position number 920 in the Crawler section.
How do I look up ZF part 4475.280.016?
This part can be found under several formats: 4475280016 / 4475.280.016 / 4475 280 016. All formats refer to the same genuine ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (4475.280.016).
Where can I buy ZF 4475.280.016?
You can purchase genuine ZF 4475.280.016 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with OEM quality guarantee.

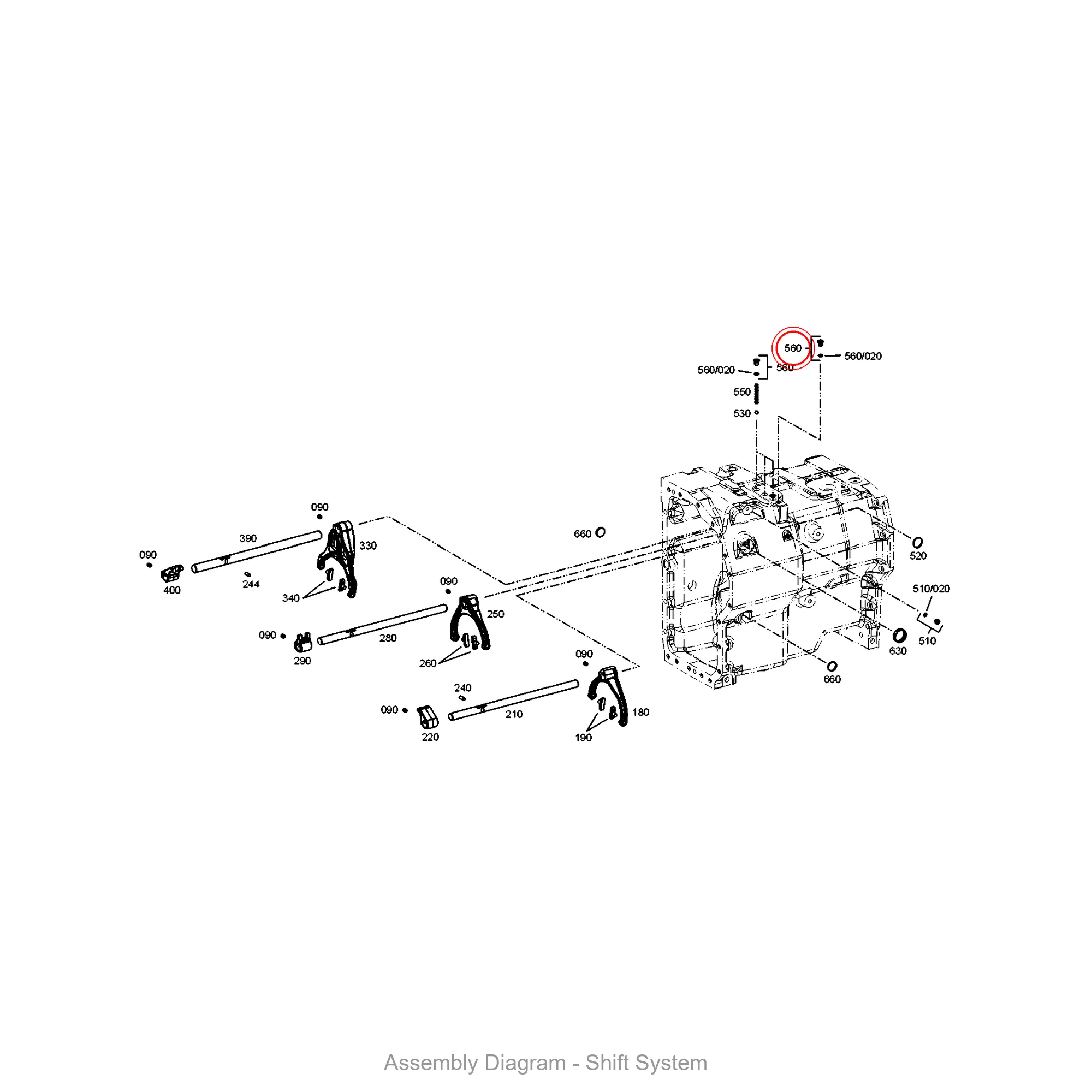

Exploded View / Assembly Diagram
The diagram below shows where ZF 4475.280.016 is located within the transmission assembly.
