ZF 0631.311.009 GROOVED STUD
ZF Part Number: 0631.311.009 (also written as 0631311009 / 0631.311.009 / 0631 311 009)
OEM Cross Reference / Interchange Numbers
ZF 0631.311.009 (GROOVED STUD) is the original manufacturer part. The following OEM and third-party part numbers are direct cross-references:
| Brand / OEM | Part Number | Type |
|---|---|---|
| 山东临工 | 7200001435 | OEM Cross Ref |
| 柳工 | SP106504 | OEM Cross Ref |
This ZF part (0631.311.009) directly replaces the following OEM numbers: 山东临工: 7200001435; 柳工: SP106504. All listed cross-reference numbers are confirmed compatible with ZF 0631.311.009.
Compatible ZF Transmission Models
This grooved stud is used in the following ZF transmission models:
- ZF 3 WG 100
- ZF 3 WG 100(300)
- ZF 3 WG 200
- ZF 3 WG 251
- ZF 3 WG 260
- ZF 3 WG 310
- ZF 4 WG 100(400)
- ZF 4 WG 100(500)
- ZF 4 WG 110(500)
- ZF 4 WG 150
- ZF 4 WG 180
- ZF 4 WG 180(500)
- ZF 4 WG 181
- ZF 4 WG 190
- ZF 4 WG 200
…and 32 additional models. Contact us to confirm fitment for your specific unit.
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Axle Housing | 882 | 4 |
| Housing | 060 | 4 |
| Housing | 510 | 4 |
| Transmission Housing | 01.050 | 4 |
| Transmission Housing | 01.150 | 4 |
| Transmission Housing | 01.490 | 4 |
| Transmission Housing | 01.628 | 4 |
| Transmission Housing | 050 | 4 |
| Transmission Housing | 120 | 4 |
| Transmission Housing | 130 | 4 |
| Transmission Housing | 150 | 4 |
| Transmission Housing | 340 | 4 |
Related Parts in Same Assembly
- 5838.300.288 — CLUTCH BELL HOUSING (Qty: 1)
- 0501.222.007 — VALVE BLOCK (Qty: 1)
- 0501.325.280 — SOLENOID VALVE (Qty: 1)
- 0501.327.379 — O-RING (Qty: 1)
- 0501.327.378 — O-RING (Qty: 1)
- 0501.327.380 — O-RING (Qty: 1)
- 0501.327.381 — SCREW (Qty: 1)
- 0750.117.075 — TAPER ROLLER BEARING (Qty: 2)
Frequently Asked Questions
What is ZF part number 0631.311.009?
ZF 0631.311.009 is an OEM grooved stud produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as 3 WG 100, 3 WG 100(300), 3 WG 200, 3 WG 251, 3 WG 260. This is a genuine ZF component, not an aftermarket reproduction.
Which ZF transmissions use 0631.311.009?
This grooved stud is found in 47 ZF transmission variants, including: 3 WG 100, 3 WG 100(300), 3 WG 200, 3 WG 251, 3 WG 260, 3 WG 310, 4 WG 100(400), 4 WG 100(500), 4 WG 110(500), 4 WG 150. These transmissions are commonly used in wheel loaders, graders, and other heavy construction equipment. Contact us to verify fitment for your specific machine.
Where is ZF 0631.311.009 installed in the transmission?
This grooved stud is located in the housing, transmission housing area of the transmission. It appears in 30 different assembly configurations. In the service manual, look for position number 882 in the Axle Housing section.
How do I look up ZF part 0631.311.009?
This part can be found under several formats: 0631311009 / 0631.311.009 / 0631 311 009. All formats refer to the same genuine ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (0631.311.009).
Where can I buy ZF 0631.311.009?
You can purchase genuine ZF 0631.311.009 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with OEM quality guarantee.

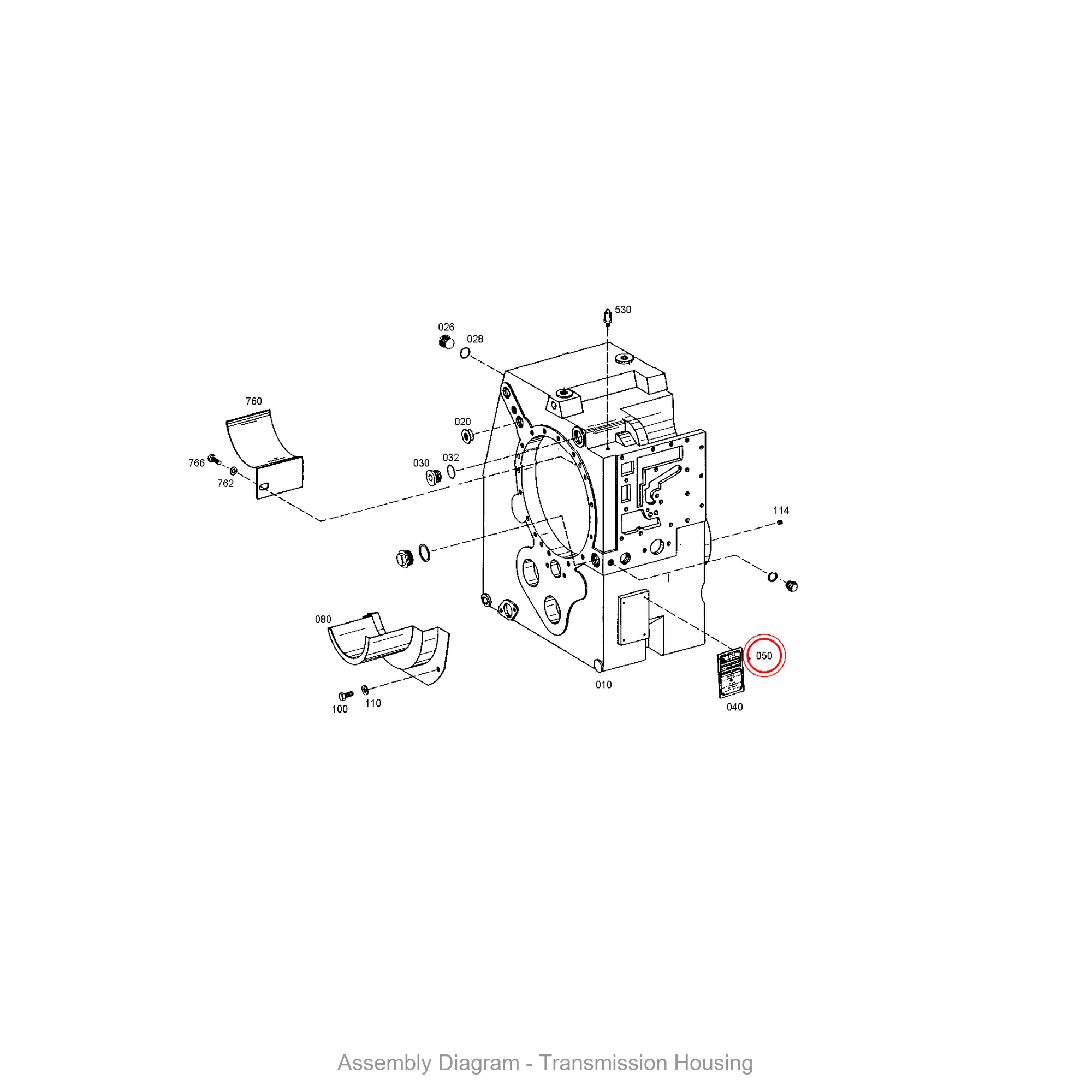

Exploded View / Assembly Diagram
The diagram below shows where ZF 0631.311.009 is located within the transmission assembly.
